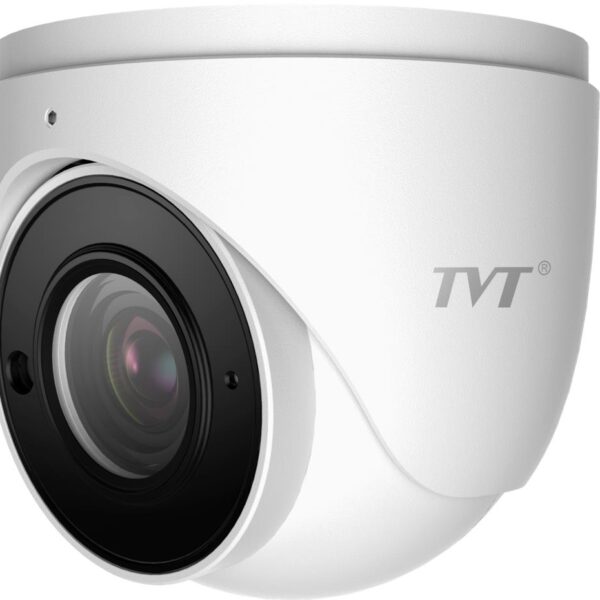

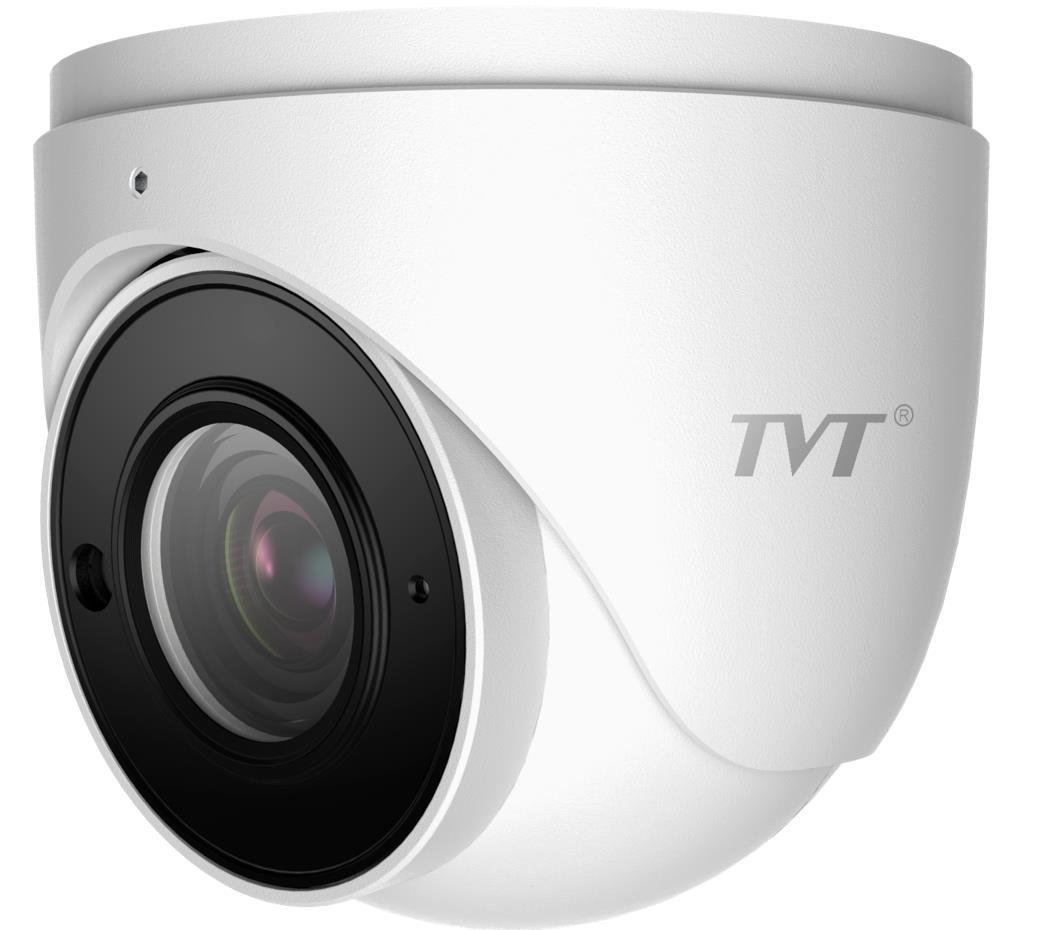

TVT 9525 2MP IP CAMERA DOME, VARIFOCAL, 1080p, 2.8-12mm, POE, SD CARD, IP67, MIC

2MP ( 1920 x 1080 ) H.265 full real time coding
Max. resolution: 1920 x 1080; ICR auto switch, true day / night
30 ~ 50m IR night view distance
3D DNR, digital WDR, HLC, BLC and ROI coding
1CH built-in MIC
Built-in micro SD card slot, up to 128GB
DC12V/PoE power supply
IP67 ingress protection
Support three streams
Support mobile surveillance by smart phones and tablet PCs with iOS or Android OS
Intelligent analytics

*Δεν  περιλαμβάνει τροφοδοτικό
** Η απομακρυσμένη πρόσβαση στην κάμερα είναι δυνατή μόνο  μέσω καταγραφικού. Διαφορετικά είναι εφικτή μόνο μέσα από το ίδιο δίκτυο.

CameraImage Sensor1 / 2.8 “CMOSImage Size1920 x 1080Electronic Shutter1 s ~ 1 / 100000 sIris TypeFixed IrisMin. Illumination0.0035 lux@F1.2,AGC ON; 0 lux with IR0.009 lux@F1.6,AGC ON; 0 lux with IRLens2.8~12mm@F1.4, manual zoom lensField of ViewHorizontal:93.5-31.9°; Vertical: 49-18.4°; Diagonal: 112-35°Lens Mount14Wide Dynamic RangeDigital WDRBLCYesHLCYesDefogYesDigital NR3D DNRAngle AdjustmentPan: 0°~360°; Tilt:0°~80°; Rotation: 0°~360°ImageVideo CompressionH.265 / H.264H.265 Compression
StandardMain Profile@ Leve4.1 High TierResolution1080P ( 1920 x 1080 ), 720P ( 1280 x 720 ), D1, CIF, 480 240Main Stream60Hz : 1080P / 720P( 1 ~ 30fps ); 50Hz : 1080P/ 720P( 1 ~ 25fps )Sub Stream60Hz : D1/CIF (1~30fps); 50HZ: D1/CIF (1~25fps)Third Stream60Hz : D1/CIF/480×240 (1~30fps); 50HZ: D1/CIF/480×240 (1~25fps)Bit Rate64 Kbps ~ 6 MbpsBit Rate TypeVBR / CBRAudio CompressionG711A / UImage SettingsROI, Saturation, Brightness, Hue, Contrast,Wide Dynamic, Sharpness,NR, etc. adjustable through client software or web browserROIEach ROI to be configured separatelyInterfacesNetworkRJ 45Video OutputNoAudioBuilt-in MIC x 1StorageBuilt-in micro SD card slot; up to 128GBResetYesFunctionsRemote MonitoringWeb browsing,CMS remote controlOnline ConnectionSupport simultaneous monitoring for up to 3 users; Support multi-stream real time transmissionNetwork ProtocolUDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, HTTP, FTP, 802.1x, UPnP, HTTPs, QoSInterface ProtocolONVIFStorageNetwork remote storage; micro SD card storageSmart AlarmMotion detection, SD card error, SD card fullIntelligent AnalyticsVideo blur detection, scene change detection, line crossing detection and regionintrusion detection, object removal detection(object left/missing)General FunctionWatermark, IP address filtering, video mask, heartbeat, illegal loginlockPoEYes, IEEE802.3afIR Distance30 ~ 50 mIngress ProtectionIP 67OthersPower SupplyDC12V(PoE power supply optional)Power Consumption7.5WOperating Environment– 30 °C ~ 60 °C (-22°F~140°F)Humidity: less than 95 % (non-condensing)Dimensions ( mm )Φ 111.5 x 99.6Weight ( net )Approx. 0.64KGInstallationCeiling mounting (wall mounting available with the junction box and
bracket)CertificateCE, FCCEnvironmental
ProtectionComplies with Directive EU RoHS, WEEE(2012/19/EU) , directive 94/62/EC and REACH(EC1907/2006)
