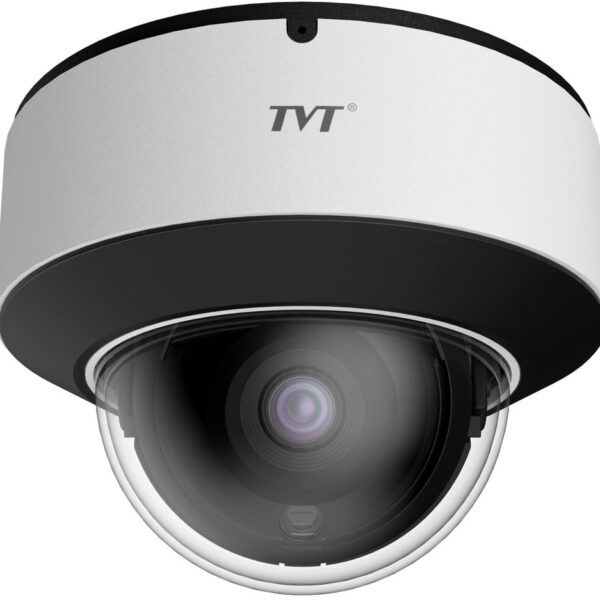

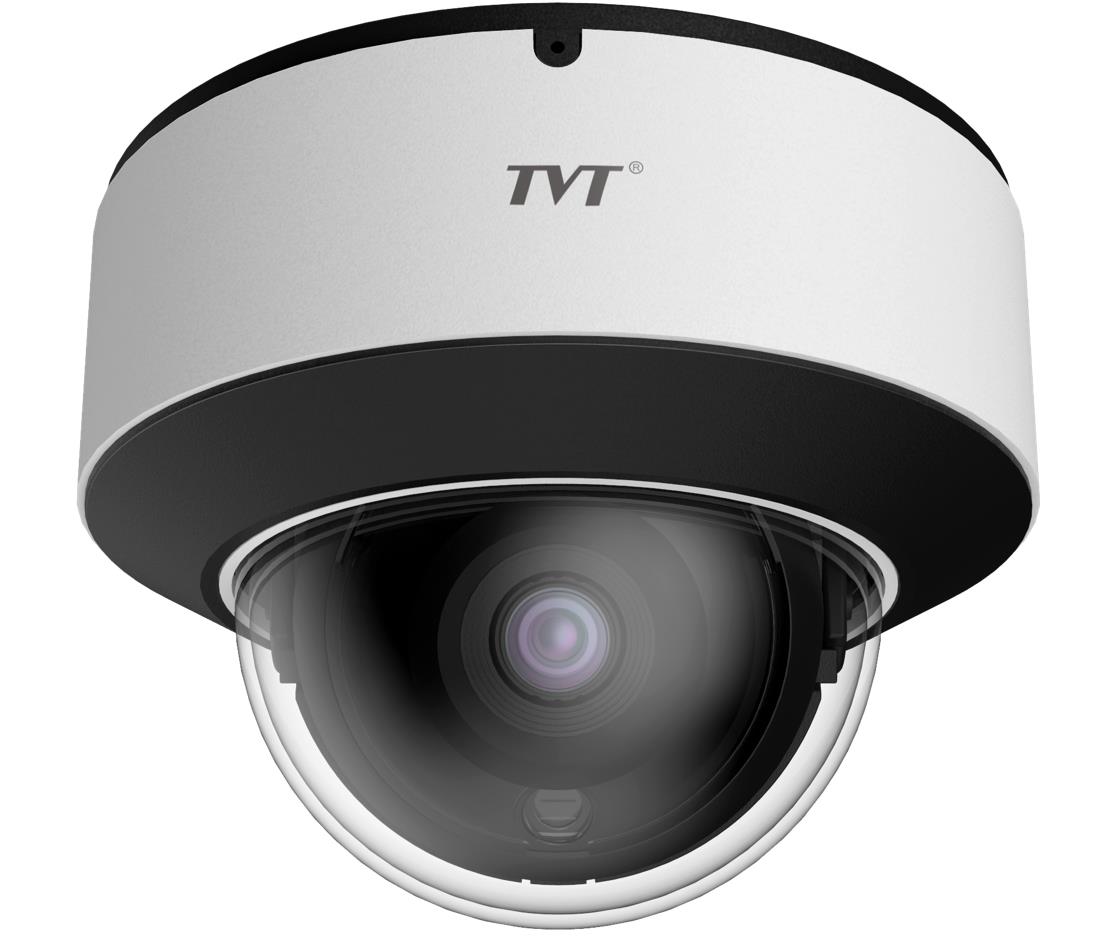

TVT 9551 5MP IP CAMERA DOME, 2,8mm, POE, SD-CARD, IP67

Features

5MP ( 2592 x 1944 ) H.265 coding
Max.resolution: 2592 1944
ICR auto switch, true day / night, ROI coding
3D DNR, digital WDR, HLC, BLC, defog
20~30m IR night view distance
Built-in micro SD card slot, up to 128GB
DC12V/PoE power supply
IP 67 & IK10
Support three streams
P2P function (optional)
Support remote monitoring by smart phones & tablet PCs with iOS and Android OS
Intelligent analytics

*Δεν περιλαμβάνει τροφοδοτικό
** Η απομακρυσμένη πρόσβαση στην κάμερα  είναι δυνατή μόνο  μέσω καταγραφικού. Διαφορετικά είναι εφικτή μόνο  μέσα από το ίδιο δίκτυο.

CameraImage Sensor1 / 2.7 “CMOSImage Size2592 x1944Electronic Shutter1 s ~ 1 / 100000 sIris TypeFixed IrisMin. Illumination0.0236 lux @F2.0, AGC ON; 0 lux with IR 0.0085 lux @ F1.2, AGC ON; 0 lux with IRLens2.8 mm @F2.0, horizontal FoV: 93.4°; Vertical FoV: 77°; Diagonal FoV: 106°3.6 mm @F2.0, horizontal FoV:79.4°; Vertical FoV: 63.8°; Diagonal FoV: 92°Lens MountM12Wide Dynamic RangeDigital WDRBLCYesHLCYesDefogYesDigital NR3D DNRAngle AdjustmentPan : 0°~355°, Tilt : 0°~67°, Rotation : 0°~355°ImageVideo CompressionH.265 / H.264H.265 Compression StandardMain Profile@Leve4.1 High TierResolution5MP ( 2592 x 1944 ), 4MP ( 2560 x 1440 ), 1080P ( 1920 x1080 ),720P ( 1280 x 720 ), D1, CIF, 480 x 240Main Stream60Hz : 5MP(1~20fps)/ 4MP(1~30fps)/ 1080P(1~30fps)/720P(1~30fps)50Hz : 5MP(1~20fps)/4MP (1~25fps)/1080P (1~25fps)/720P (1~25fps)Sub Stream60Hz : 720P(1~15fps)/D1(1~30fps)/CIF (1~30fps);50Hz:720P(1~12fps)/D1(1~25fps)/CIF (1~25fps)Third Stream60Hz : D1/CIF/480 x 240 (1~30fps); 50Hz: D1/CIF/480×240 (1~25fps)Bit Rate64 Kbps ~ 5 MbpsBit Rate TypeVBR / CBRImage SettingsROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, NR, etc. adjustable through client software or web browserROIEach ROI to be configured separatelyInterfacesNetworkRJ45Video OutputNoAudioNoStorageBuilt-in micro SD card slot, up to 128GBResetYesFunctionsRemote MonitoringWeb browsing, CMS remote controlOnline ConnectionSupport simultaneous monitoring for up to 4 users; Support multi-stream real time transmissionNetwork ProtocolUDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, 802.1x, UPnP, HTTP, HTTPs, QoSInterface ProtocolONVIFStorageNetwork remote storageSmart AlarmMotion detectionGeneral FunctionWatermark, IP address filtering, video mask, heartbeat, illegal login lockIntelligent AnalyticsObject  removal detection (object left/missing), scene change detection, video  blur detection, intrusion detection and line crossing detectionPoEYesIR Distance20 ~ 30 mIngress ProtectionIP67&IK10OthersPower SupplyDC12V/PoEPower Consumption6WOperating Environment– 30 °C ~ 60 °C (-22°F~140°F)Humidity: less than 95 % (non-condensing)Dimensions ( mm )O 116.7 x 90Weight ( net )Approx. 0.60KGInstallationCeiling mounting(wall mounting available with the junction box and bracket)CertificateCE, FCCEnvironmental ProtectionDirective EU RoHS, WEEE(2012/19/EU), directive 94/62/EC and REACH(EC1907/2006)
