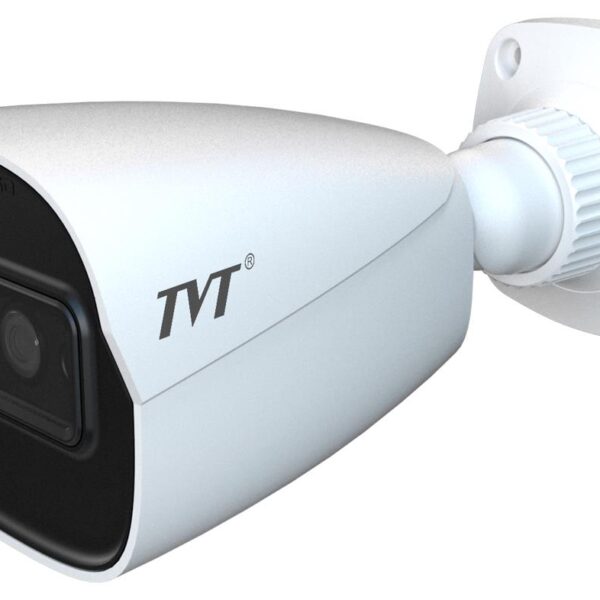

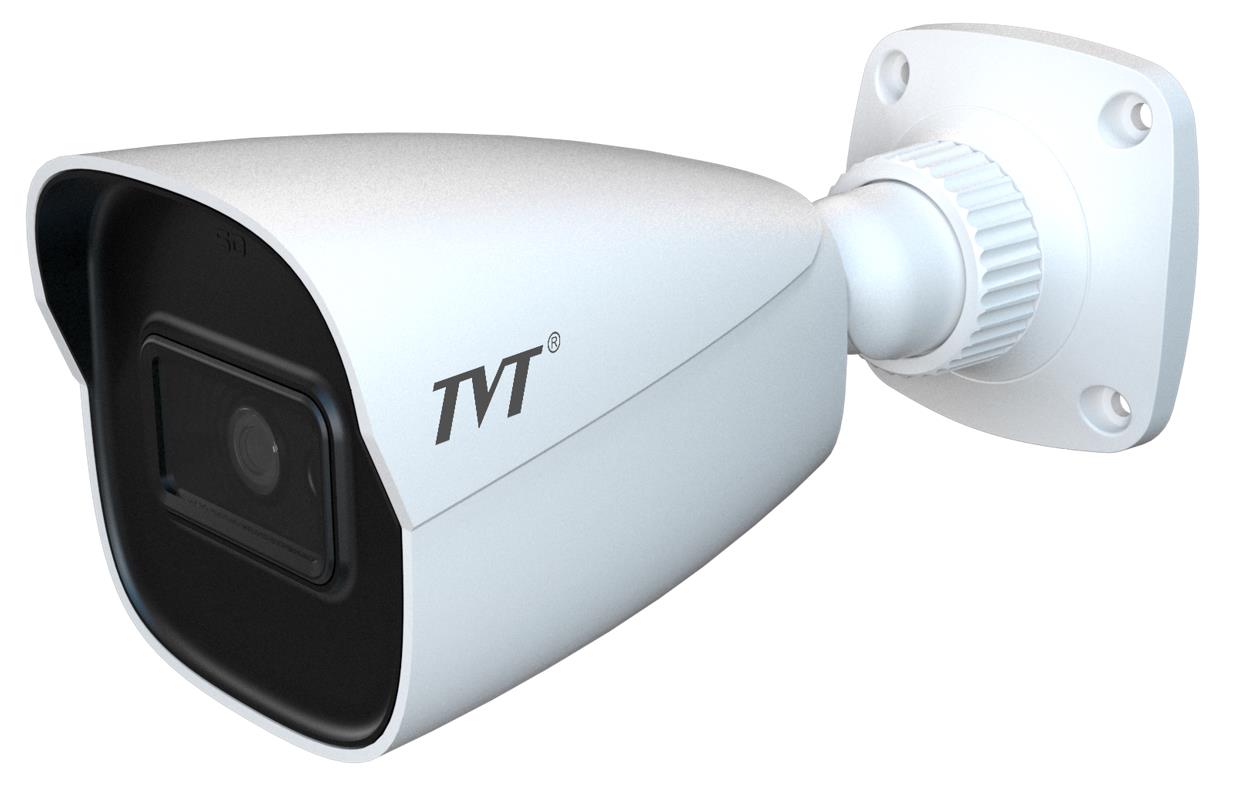

TVT 9422 2MP IP CAMERA BULLET, 1080p, 2.8mm, POE, STARLIGHT, SD CARD, IP67

Features

2MP ( 1920 x 1080 ) H.265 full real time coding
Max. resolution: 1920 x 1080; ICR auto switch, true day / night
30~ 50m IR night view distance
Starlight
3D DNR, Digital WDR, HLC, BLC and Defog
ROI coding
Built-in micro SD card slot, up to 128GB
DC12V/PoE power supply
IP67 ingress protection;
Support dual streams
Support mobile surveillance by smart phones with iOS and Android OS
Intelligent Analytics: video blur detection, line crossing detection, intrusion detection

*Δεν περιλαμβάνει τροφοδοτικό
** Η απομακρυσμένη πρόσβαση στην κάμερα είναι δυνατή μόνο μέσω καταγραφικού. Διαφορετικά είναι εφικτή μόνο μέσα από το ίδιο δίκτυο.

CameraImage Sensor1 / 2.8 “CMOSImage Size1920 ? 1080Electronic Shutter1 s ~ 1 / 100000 sIris TypeFixed IrisMin. Illumination0.007 lux@F2.0,AGC ON; 0 lux with IR 0.0028 lux@F1.2,AGC ON; 0 lux with IRLens2.8 mm @F2.0, H.FoV: 103.5°; V.FoV:54.1°; D.FoV:107.7
